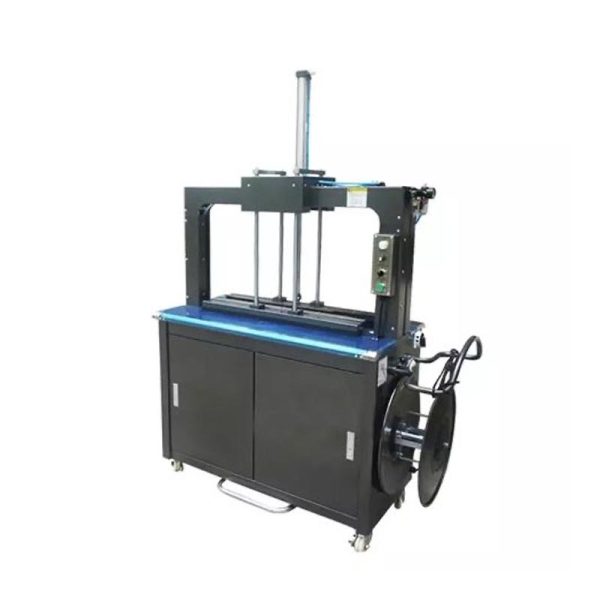

AUTOMATIC COMPRESSED TYPE STRAPPING MACHINE, YOUNGSUN BRAND

• Power : AC220V/50HZ. 0.6KW
• Air source pressure : 4MPa-0.6MPa
• Machine size : LxWxH=1600x585x1970mm
• Table height : 800-850mm
• Frame size : W1250mmxH500mm
• Strapping speed : Less than 20times/min
• Strapping force : 0-45kg
• Suitable strapping rope : Polypropylene, Width
• 5mm,6mm, thickness 0.5-0.8mm
• Belt roll width                              :170-190mm
• Belt roll inner diameter   :200-210mm,
• outer diameter 400-450mm
• Bonding mode: hot melt method, bottom bonding, bonding surface ≧90%, bonding position deviation is ≦
• Machine weight:220kg
• Noise: working noise less than 75DB

Electric parts:

• Button switch: Siemens APT
• PLC controller: YOUNGSUN
• Rely : Schneider
• Motor: Meiwa
• Cylinder: Airtac
• Sensor : YOUNGSUN
