- Function:
- This machine complete with Slotting, slitting, creasing and Corner Cutting.
- Feature:
- Semi-auto Chain feeding.
- Synchronous adjusting the slotting blade, save the adjusting time, Manual adjusting the Creasing unit. The Creasing unit linkage moving with the slotting unit
- Electric phase: 360 degree planetary gear electric phase front or back moving adjustment. Adopt motor micro adjusting device, Easy operation, adjusting accuracy, lock reliable, slotting smooth.
- Corner cutting blade special design and manufacturing, long working life.
- All the transmission roller and shaft hard chrome plated.
- Gear transmission adopt non-clearance fit, prevent the error of gear adjusting, concentrate supply oil auto lubrication, reduce the noise, long work life.
- Wallboard thickness: 40mm
- Equipped with counter, auto counting the quantity of paperboard.
- Electric element: Delta inverter, another adopt CHINT or CHINAPEOPLE

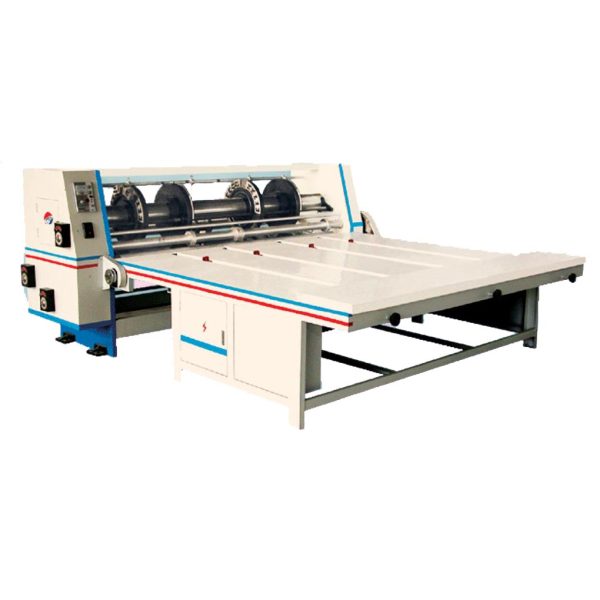

Combined Slotting Machine
Original price was: BDT: 1,100,000.00.BDT: 1,050,000.00Current price is: BDT: 1,050,000.00.
- Machine Size (Working width) : 1400 x 2600 mm
- Cutter diameter : 480mm
- Max Board Feeding Size : 1400 x 2600 mm
- Max slotting depth ; 350 mm
- Standard slotting width : 7 mm
- Min slotting distance (positive) : 120 mm
- Slotting speed : 0-70 pcs
- Total power : 3 Kw
- Overall dimension : 3000X2600X1600 mm
